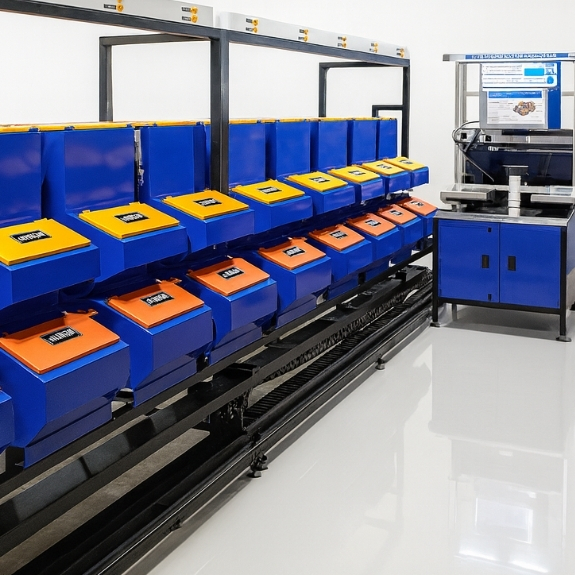

Chemical Batch Weighing
- Up to 10 mg accuracy for small chemicals
- FIFO (First In First Out) with J-type SS-304 dual bin structure
- Powered by ProdNX platform
- Barcode-based closed-loop filling mode
- Multiple formulas / recipes with SQL record database
- Multiple levels of security with password protection
- Bin storage capacity designed to suit raw material bag size
Polymer Weighing
- Accuracy up to 50 gm
- Take-off conveyor, checkweigher conveyor, and feeding conveyor as per desired dimensions
- Feeding conveyor compatible for use with checkweigher conveyor system as well as standalone weighing system
- Centralized control and reporting with scheduling

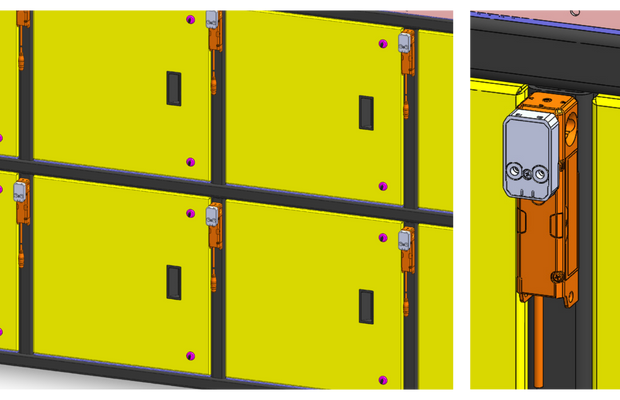

- Storage rack with magnetically locked in/out doors

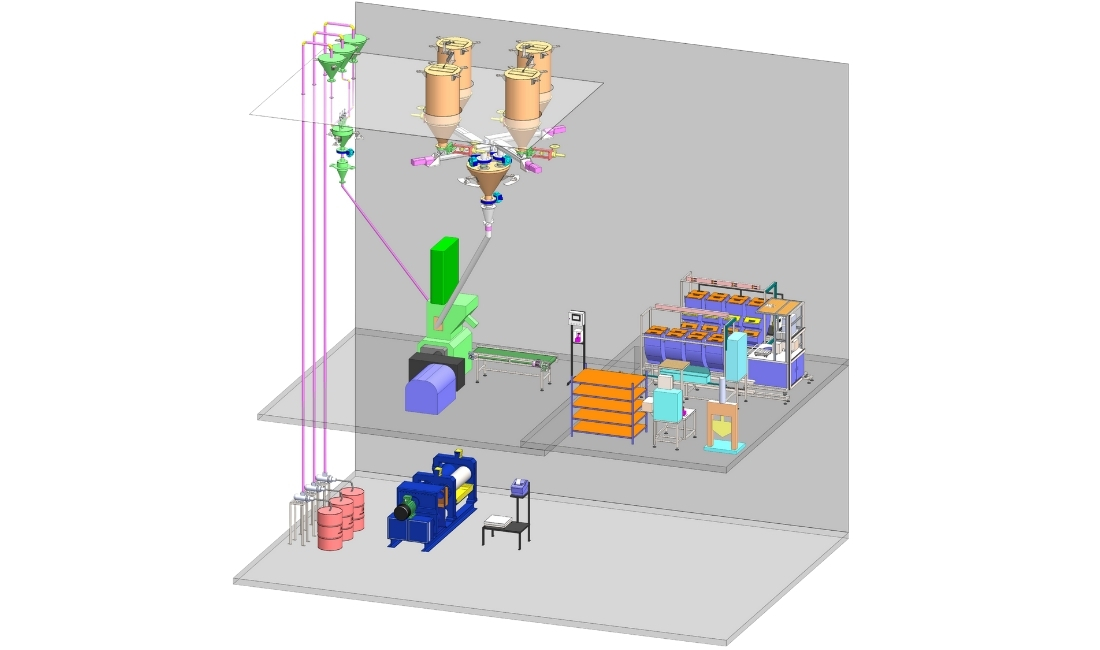

Kneader/Intermix Automation
- Recipe-based formulation
- Multiple mixing stages to ensure proper mixing as per recipe
- RPM control with chamber temperature control and analysis
- Batch scheduling managed centrally
- Mixing sequence control for the mixer
- Automatic weighing and dispensing of oil, rubber, and carbon
- Mixing time, temperature, RPM, and energy parameters used to control the mixing cycle
- Capable of handling multiple oils, carbon, fillers, polymers, master batches, and more

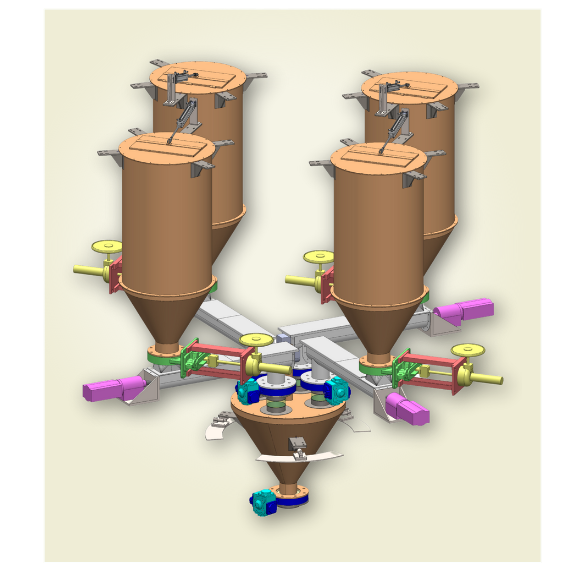

Carbon Weighing
- Variable speed screw-based precise carbon and filler conveying
- Accuracy up to 10 gm
- Centralized control and reporting with scheduling
- System compatible for use with 50 kg bags as well as jumbo bags
- Auto charging and sequencing for faster processing
- Customized design to ensure batch time and productivity within system capacity

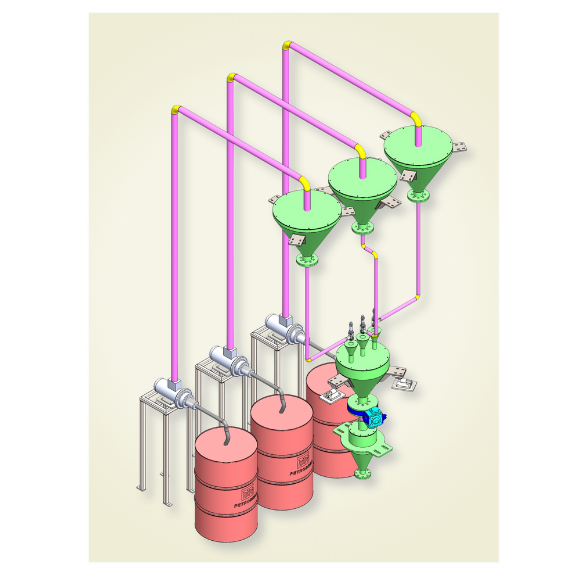

Oil Weighing
- Auto dosing and sequencing for faster processing
- Accuracy up to ±10 mg
- Centralized control and reporting with scheduling
- Heating provision for highly viscous oils
- Supports multi-oil injection with minimal cross-contamination

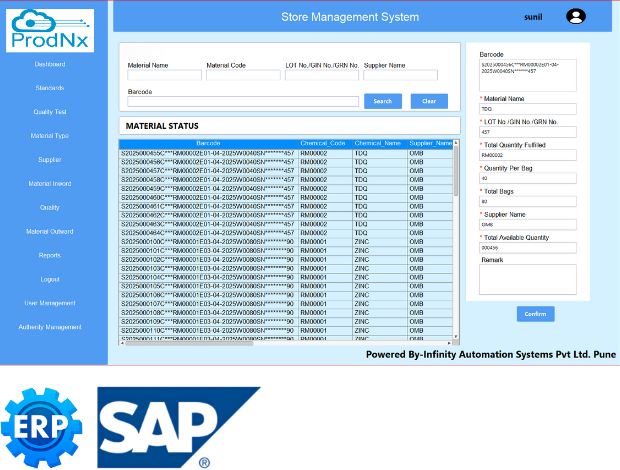

Store management system
- Smart Inventory Control: Real-time tracking of raw materials and finished goods
- FIFO with Barcode: Automated scanning and stock updates for efficient operations
- Automated Reordering: Stock alerts and auto-replenishment when inventory levels fall below defined thresholds
- ERP / SAP Connectivity: Fully compatible with centralized data management systems
ProdNx IT Platform
All our systems are controlled and monitored through ProdNx, a powerful IT platform designed for data recording, real-time reporting, and advanced plant management.
ProdNx Modules Include:
- ProdNx Store Management System
- ProdNx Recipe Management System
- ProdNx Small Chemical Management System
Frequently Asked Questions
-
What is Rubber Mixing Automation?
Rubber Mixing Automation is an automated system used in rubber manufacturing to control the weighing, dosing, feeding, and mixing of raw materials such as rubber polymers, carbon black, oils, and chemical additives according to predefined formulations. It improves batch accuracy, ensures consistent compound quality, and reduces manual handling.
Modern systems include smart inventory control for real-time material tracking, FIFO with barcode scanning for accurate stock updates, and automated reordering when stock levels fall below set limits. These systems can also integrate with ERP / SAP platforms for centralized data management.
Advanced solutions from Infinity Automation Systems Pvt. Ltd. help manufacturers improve efficiency, traceability, and overall production control while minimizing material wastage.
