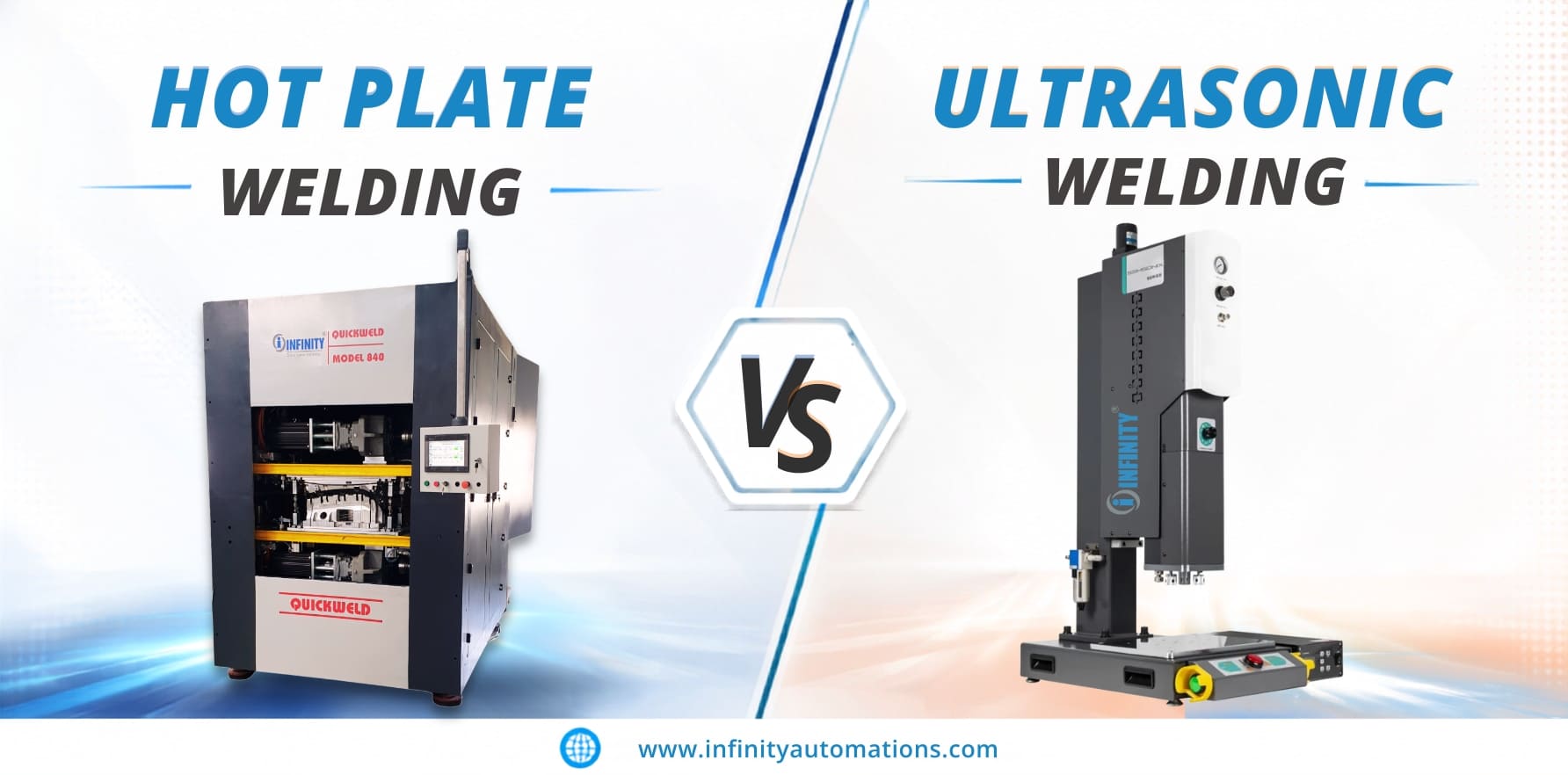

Hot Plate Welding vs Ultrasonic Welding: Which Plastic Welding Process is Better?
Choosing the right plastic welding technology is one of the most important decisions for manufacturers looking to produce strong, reliable, and cost-effective plastic assemblies. Whether you're manufacturing automotive components, medical devices, electrical enclosures, household products, or industrial equipment, selecting the appropriate welding process directly affects product quality, production efficiency, and long-term manufacturing costs.
Among the numerous plastic welding technologies available today, Hot Plate Welding and Ultrasonic Welding are two of the most widely adopted methods. Both processes create permanent, high-strength joints without the need for adhesives or mechanical fasteners, yet they operate using entirely different principles and are suitable for different applications.
This comprehensive guide compares Hot Plate Welding vs Ultrasonic Welding across every major parameter—including working principle, welding speed, accuracy, material compatibility, cost, maintenance, applications, advantages, disadvantages, and much more—to help you determine which solution best fits your manufacturing requirements.
Understanding Hot Plate Welding
A Hot Plate Welder joins thermoplastic components by heating their mating surfaces using a temperature-controlled heated plate. Once the surfaces become molten, the heating plate retracts, and the parts are pressed together under controlled pressure. As the molten plastic cools, it forms a strong molecular bond.
Unlike adhesives or screws, this process creates a homogeneous joint with excellent structural integrity.
The process is especially effective for:
- Large plastic components
- Thick-walled parts
- Complex geometries
- Leak-proof assemblies
- High-strength structural products
Understanding Ultrasonic Welding
Ultrasonic Welding joins thermoplastics using high-frequency mechanical vibrations, typically between 20 kHz and 40 kHz.
Instead of external heat, ultrasonic energy generates friction at the interface between the two plastic parts. This localized friction melts the material within fractions of a second, creating a strong welded joint once pressure is maintained during cooling.
Ultrasonic welding is widely used for:
- Small precision components
- Medical products
- Electronics
- Consumer goods
- Automotive sensors
- Packaging products
Working Principle Comparison
Hot Plate Welding Process
The welding cycle typically includes:
- Load plastic components into fixtures.
- Heated plate moves between components.
- Contact surfaces melt evenly.
- Heating plate retracts automatically.
- Parts are pressed together.
- Cooling under pressure.
- Finished welded component is removed.
The heating temperature generally ranges between 200°C and 450°C, depending on the thermoplastic material.
Ultrasonic Welding Process
The process consists of:
- Plastic parts placed in fixture.
- Sonotrode applies pressure.
- Ultrasonic vibrations begin.
- Friction generates localized heat.
- Plastic melts at joint interface.
- Vibrations stop.
- Pressure maintained during cooling.
- Weld completed.
Typical welding time ranges from 0.2 to 2 seconds.
Hot Plate Welding vs Ultrasonic Welding: Feature Comparison
| Feature | Hot Plate Welding | Ultrasonic Welding |
|---|---|---|
| Heat Source | Heated plate | Ultrasonic vibrations |
| Welding Speed | Medium | Extremely fast |
| Joint Strength | Very High | High |
| Thick Parts | Excellent | Limited |
| Large Parts | Excellent | Limited |
| Precision Parts | Good | Excellent |
| Leak-proof Welding | Excellent | Moderate |
| Surface Finish | Good | Excellent |
| Automation | Easy | Easy |
| Initial Investment | Moderate | High |
| Maintenance | Low | Medium |
| Cycle Time | 10–60 sec | 0.2–2 sec |
Accuracy Comparison
Hot Plate Welding
A Hot Plate Welder offers outstanding repeatability because the temperature, pressure, and welding time are precisely controlled.
Advantages include:
- Uniform heating
- Consistent weld quality
- Strong molecular bonding
- Excellent dimensional stability
It is ideal for products where structural strength matters more than ultra-fast production.
Ultrasonic Welding
Ultrasonic welding excels in precision manufacturing.
Benefits include:
- Micron-level accuracy
- Minimal flash
- Excellent cosmetic finish
- High repeatability
- Suitable for miniature components
It is widely used in electronics and medical manufacturing, where dimensional accuracy is critical.
Speed Comparison
One of the biggest differences lies in production speed.
Hot Plate Welding
Typical cycle time: 10–60 seconds
Depends on: Material, Thickness, Heating temperature, Cooling time
Suitable for: Medium-volume production, Heavy-duty components
Ultrasonic Welding
Typical cycle time: 0.2–2 seconds
Ideal for: Mass production, High-speed assembly lines, Consumer products, Medical disposables
If production speed is your highest priority, ultrasonic welding clearly has the advantage.
Cost Comparison
Initial Machine Cost
Hot Plate Welder – Generally offers lower investment, simpler construction, lower tooling cost, affordable maintenance. Ideal for manufacturers seeking high strength without excessive capital expenditure.
Ultrasonic Welding Machine – Higher costs arise due to ultrasonic generator, precision transducer, booster assembly, sonotrode tooling, and advanced control systems. While more expensive initially, ultrasonic welding delivers excellent ROI in high-volume manufacturing.
Operating Cost
Hot Plate Welding – Operating costs include electricity, heating element replacement, and minimal maintenance. Overall operating expenses remain relatively low.
Ultrasonic Welding – Operating costs involve sonotrode wear, booster replacement, generator servicing, and calibration. Maintenance is more specialized than hot plate systems.
Material Compatibility
Hot Plate Welding Materials
A Hot Plate Welder can weld many thermoplastics, including:
- Polypropylene (PP)
- Polyethylene (PE)
- ABS
- Nylon (PA)
- HDPE
- LDPE
- PVC
- PC
- PBT
- PMMA
It performs particularly well on semi-crystalline plastics.
Ultrasonic Welding Materials
Best suited for:
- ABS
- PS
- PC
- Acrylic
- PVC
- Nylon
- Some PP applications
Certain soft or highly flexible plastics may not weld effectively using ultrasonic energy.
Part Size Capability
Hot Plate Welding
Excellent for:
- Fuel tanks
- Water tanks
- Automotive ducts
- Battery housings
- Industrial containers
- Large appliance components
Large surface areas are not a limitation.
Ultrasonic Welding
Best suited for:
- Small housings
- Electronic assemblies
- Connectors
- Filters
- Medical cartridges
- Packaging components
Very large parts become difficult due to vibration energy distribution.
Joint Strength Comparison
Joint strength depends on several factors.
Hot Plate Welding generally provides:
- Deep molecular fusion
- Strong structural joints
- Excellent pressure resistance
- Superior leak-proof performance
Ultrasonic Welding provides:
- Strong localized joints
- High tensile strength
- Excellent cosmetic appearance
- Reliable performance for precision products
For heavy-duty applications, hot plate welding typically offers stronger structural welds.
Applications
Industries Using Hot Plate Welding
A Hot Plate Welder is commonly used in:
- Automotive manufacturing
- Water tank production
- Fuel tank manufacturing
- Battery housing production
- Industrial plastic fabrication
- Medical equipment
- Agricultural equipment
- HVAC systems
Industries Using Ultrasonic Welding
Ultrasonic welding is widely adopted in:
- Electronics
- Medical devices
- Consumer products
- Packaging
- Toys
- Automotive electronics
- Wire harness manufacturing
- Electrical connectors
Produces exceptionally strong joints, ideal for large plastic components, suitable for thick-walled parts, supports complex geometries, excellent leak-proof performance, wide material compatibility, lower tooling costs, consistent weld quality, high reliability, long machine life.
Slower production speed, heating plate requires regular cleaning, longer cooling cycle, larger machine footprint, not ideal for very small precision components.
Extremely fast cycle times, no external heat source, clean process, minimal flash, excellent precision, compact equipment, low energy consumption, ideal for automation, superior cosmetic finish.
Higher machine cost, limited part size, less suitable for thick plastics, tool wear over time, requires precise joint design, material limitations for certain thermoplastics.
Side-by-Side Comparison Table
| Parameter | Hot Plate Welder | Ultrasonic Welding |
|---|---|---|
| Technology | Contact Heating | High-Frequency Vibration |
| Best For | Large Parts | Small Parts |
| Speed | Moderate | Very Fast |
| Strength | Excellent | Excellent |
| Precision | High | Very High |
| Thick Components | Excellent | Limited |
| Large Components | Excellent | Poor |
| Leak-proof Applications | Excellent | Moderate |
| Tooling Cost | Lower | Higher |
| Machine Cost | Moderate | High |
| Maintenance | Low | Moderate |
| Automation | Excellent | Excellent |
| Surface Finish | Good | Excellent |
Which Plastic Welding Technology Should You Choose?
There is no universal answer because the best process depends on your application.
Choose a Hot Plate Welder if you need:
- Large plastic components
- Thick sections
- Leak-proof assemblies
- High structural strength
- Pressure-resistant products
- Cost-effective equipment
- Durable industrial applications
Examples include: Fuel tanks, Water tanks, Automotive ducts, Battery cases, Industrial containers
Choose Ultrasonic Welding if you need:
- High-speed production
- Precision assemblies
- Small plastic components
- Medical devices
- Electronic products
- Consumer goods
- Excellent cosmetic finish
Examples include: Electrical connectors, Medical cartridges, Plastic filters, Automotive sensors, Small electronic housings
Future Trends in Plastic Welding Technologies
The evolution of Plastic Welding Technologies is being driven by Industry 4.0 and smart manufacturing. Modern systems now feature:
- PLC-based automation
- Servo-controlled motion systems
- IoT-enabled machine monitoring
- Real-time process analytics
- Vision inspection systems
- Data logging and traceability
- Predictive maintenance
- Robotic integration
- AI-assisted quality optimization
Looking for the Right Plastic Welding Solution?
Contact Infinity Automation Systems today to discuss your application requirements. Our engineering team will help you select the right welding technology and automation solution for your manufacturing needs.
Contact Infinity Automation →Conclusion
Both Hot Plate Welding and Ultrasonic Welding are highly effective Plastic Welding Technologies, but each serves different manufacturing needs.
If your production requires high structural strength, large plastic components, thick materials, or leak-proof assemblies, investing in a Hot Plate Welder is the better choice. Its ability to create durable, uniform welds makes it ideal for demanding industrial applications.
On the other hand, if your priority is high-speed production, precision, and compact component assembly, Ultrasonic Welding offers unmatched efficiency and repeatability, particularly for medical devices, electronics, and consumer products.
Before making a purchasing decision, evaluate your product design, material type, production volume, cycle time requirements, and long-term operating costs. Selecting the right Plastic Welding Machine will improve productivity, product quality, and overall manufacturing performance for years to come.
Frequently Asked Questions (FAQs)
A Hot Plate Welder is a plastic welding machine that joins thermoplastic components by heating the mating surfaces with a temperature-controlled hot plate before pressing them together to form a strong molecular bond.
Yes. For large, thick, and structural plastic components, Hot Plate Welding generally produces stronger and more durable joints. Ultrasonic Welding is better suited for precision and small components.
Ultrasonic Welding is significantly faster, with welding cycles typically ranging from 0.2 to 2 seconds, making it ideal for high-volume manufacturing.
Hot Plate Welding is compatible with thermoplastics such as Polypropylene (PP), Polyethylene (PE), ABS, Nylon (PA), PVC, PC, HDPE, LDPE, PMMA and PBT.
Hot Plate Welding generally has lower machine, tooling and maintenance costs, making it a cost-effective choice for large and heavy-duty plastic components.
Yes. Hot Plate Welding is widely used for manufacturing leak-proof products such as automotive fuel tanks, water tanks, battery housings, industrial containers and fluid-handling components because it creates strong, continuous molecular bonds.
Ultrasonic Welding is extensively used in electronics, medical devices, automotive sensors, consumer goods, electrical connectors, packaging products and precision plastic assemblies where high-speed production and accuracy are essential.
The choice depends on your application. Select Hot Plate Welding for large, thick, high-strength or leak-proof plastic components. Choose Ultrasonic Welding when manufacturing small, lightweight, precision parts that require very fast production cycles and excellent cosmetic finish.
